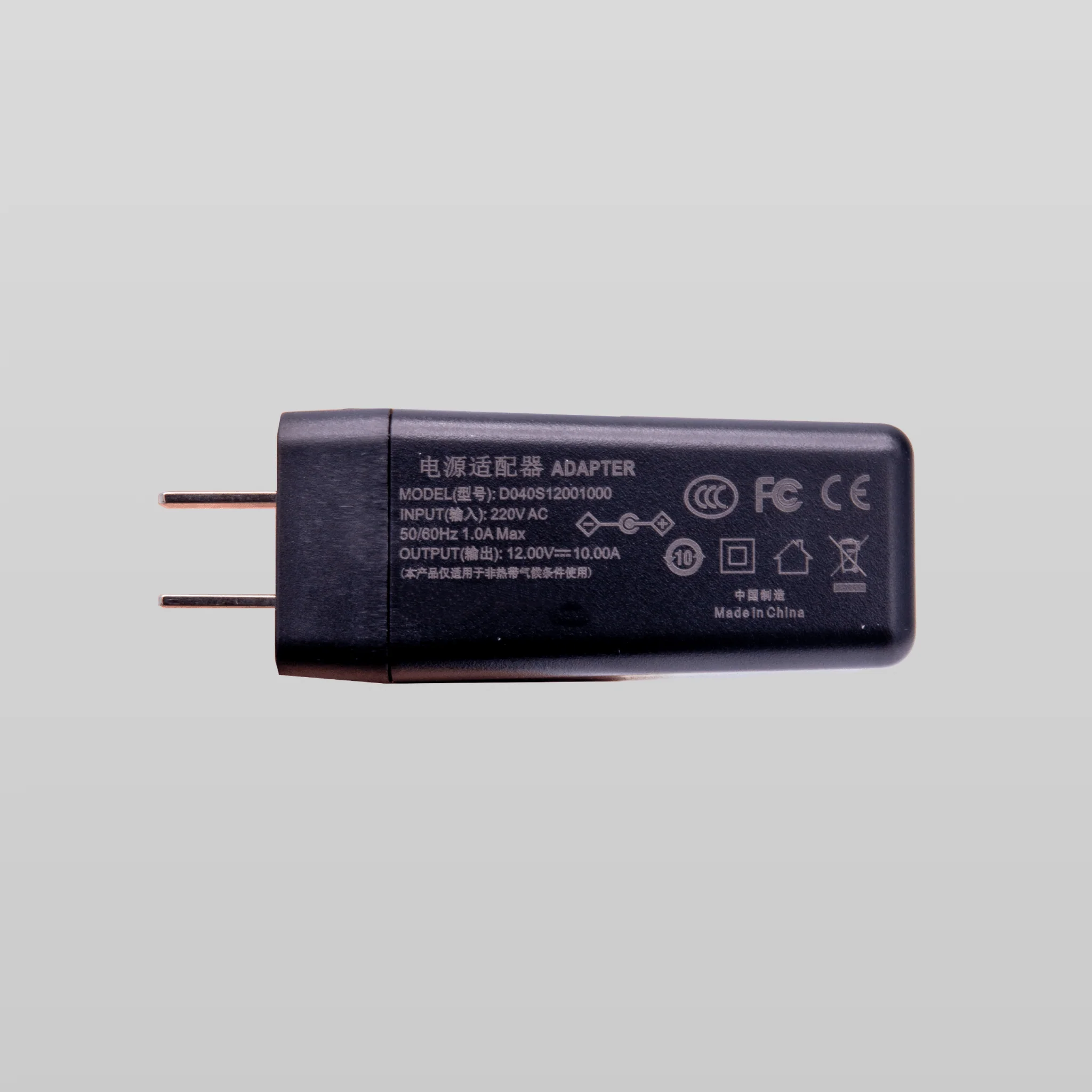

120W 12V/10A GaN Power Adapter for ZimaBoard & ZimaBoard 2
Introduction
Introducing our high-power power supply, designed to efficiently and reliably meet your high-performance needs. With a total output power of up to 120W, it can not only stably power large-capacity hard drives, but also directly power low-profile graphics cards (GPU) mounted on ZimaBoard 1 or ZimaBoard 2 through PCIe slots.
This power supply supports a wide voltage input of 90Vac to 264Vac, ensuring compatibility with various systems and environments.
Key Features
-
GaN technology：higher conversion efficiency, more portable size, lower heat generation,
-
Safe & Stable Power: Features short circuit and overcurrent protection to safeguard your devices and extend their lifespan.
-
Premium Quality: Handpicked after testing dozens of options for the best manufacturing, assembly, and performance standards.
-
Global Adaptability: Comes with interchangeable plugs (US, UK, EU, AU), ensuring it works wherever you are.
Specifications
-
Input Voltage: AC 100V-240V
-
Output Voltage: DC 12V 10A (120W)
-
DC Plug: 5.5mm x 2.5mm
-
Standby Power Consumption (Max): 0.21W
-
Safety Features: Short Circuit Protection, Over Current Protection
-
Certification: CE, FCC, RoHS
-
Working Temperature: 0 ~ 35℃
-
Dimensions: 75mm x 75mm x 32mm
-
Average Efficiency：91% （115v 60Hz/230v 50Hz）
This power supply has been carefully designed and tested to meet the highest performance, reliability and safety standards to ensure that you are provided with a seamless and efficient power solution.
Application Scenario
-
NAS
-
AI Server
-
Network router
-
Interactive art installation
Shipping List
-
120W Power adapter x1
-
AU plug x1
-
EU plug x1
-
UK plug x1
-
US plug x1
How to use it?
-
Align the arrows on the adapter and the plug head (both sides have a small ▲ symbol).
-
Insert the plug head straight into the adapter.
-
Rotate it towards "closed" until you hear a "click" sound - that means it's locked in place.
-
Done! You can now safely plug it into your outlet and power on your ZimaBoard 2.
