ZimaBoard 2 Cooling Fan
Introduction

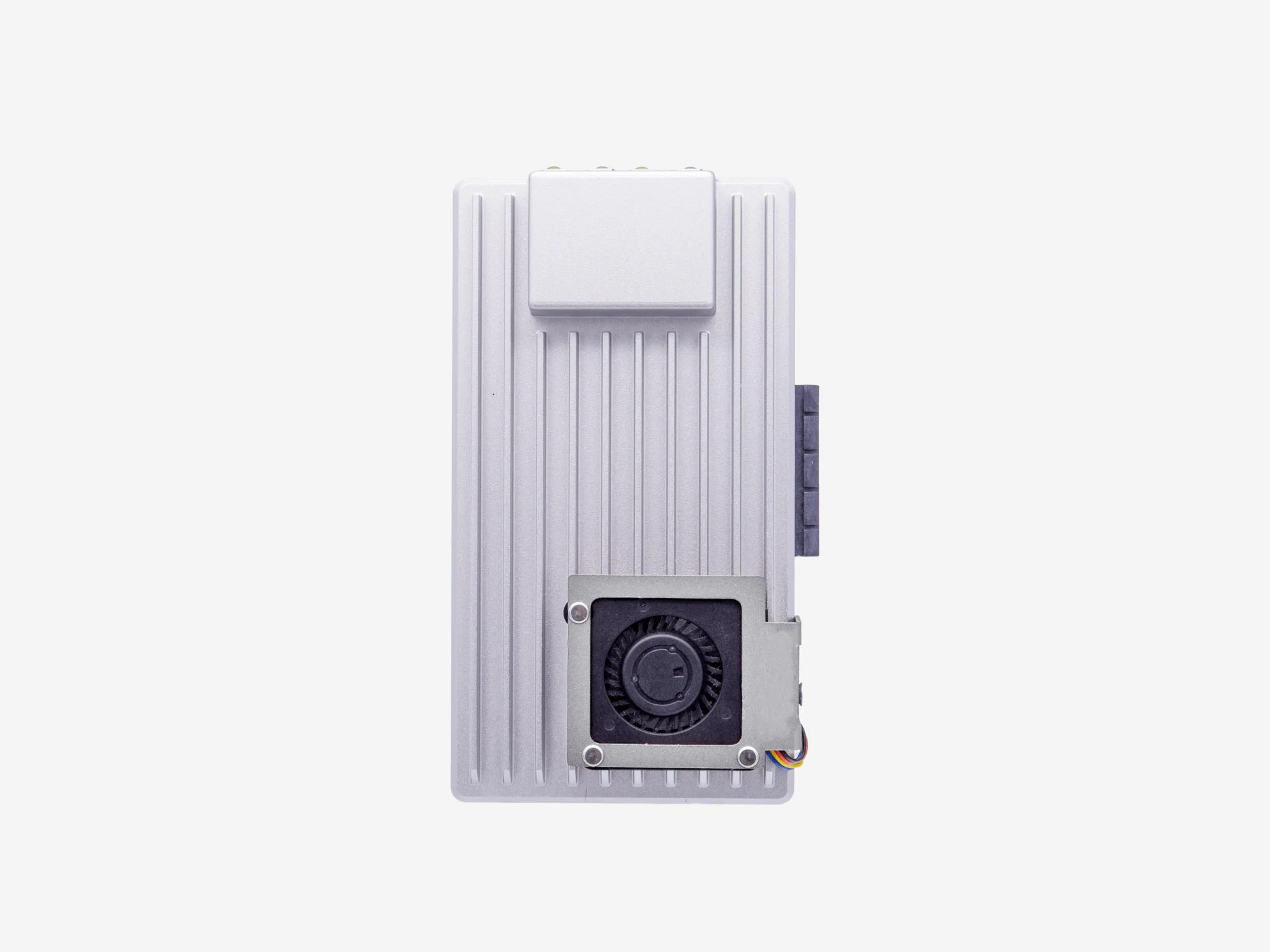

ZimaBoard2 Active Cooling Solution
This cooling fan is an upgrade solution designed for the ZimaBoard2 series. The module provides a standard cooling solution to support the stable operation of your device.
This is an optional component for users who want to optimize the cooling of ZimaBoard2. The design is simple, the installation is simple, and it can effectively reduce the temperature of the device. No additional power supply is required, directly connected to board2, and supports PWM speed regulation. Silent, efficient, space-saving, adaptable to your various projects
Note: Before assembling the fan, make sure the power is disconnected. And here is the installation guide, feel free to check it: 👉 ZimaBoard 2 Fan Installation Guide & PWM Control
Key Features
-
Enhanced Compatibility: Fully compatible with all ZimaBoard2 models, adapting to various configurations.
-
Sleek Design, Easy Installation: Modular design for effortless setup, effectively reducing operating temperatures.
-
Smart Speed Control, Quiet & Efficient: Supports PWM auto-adjustment, and runs quietly with a compact footprint.
Specifications
-
Fan Type：4007
-
Rated Voltage (V): 12V
-
Rated Current (Amp): 0.10A (MAX)
-
Rated Speed (RPM): 6000±10%
-
Max Airflow (CFM): 1.5
-
Max Pressure (mmH20): 6.3
-
SPL (dB(A)):30.6
Application Scenario
-
Home Server
-
Personal Lab Tools
Shipping list
-
Cooling Fan x1
-
Frame x1
-
Fixing screw x4
-
Screwdriver x2
