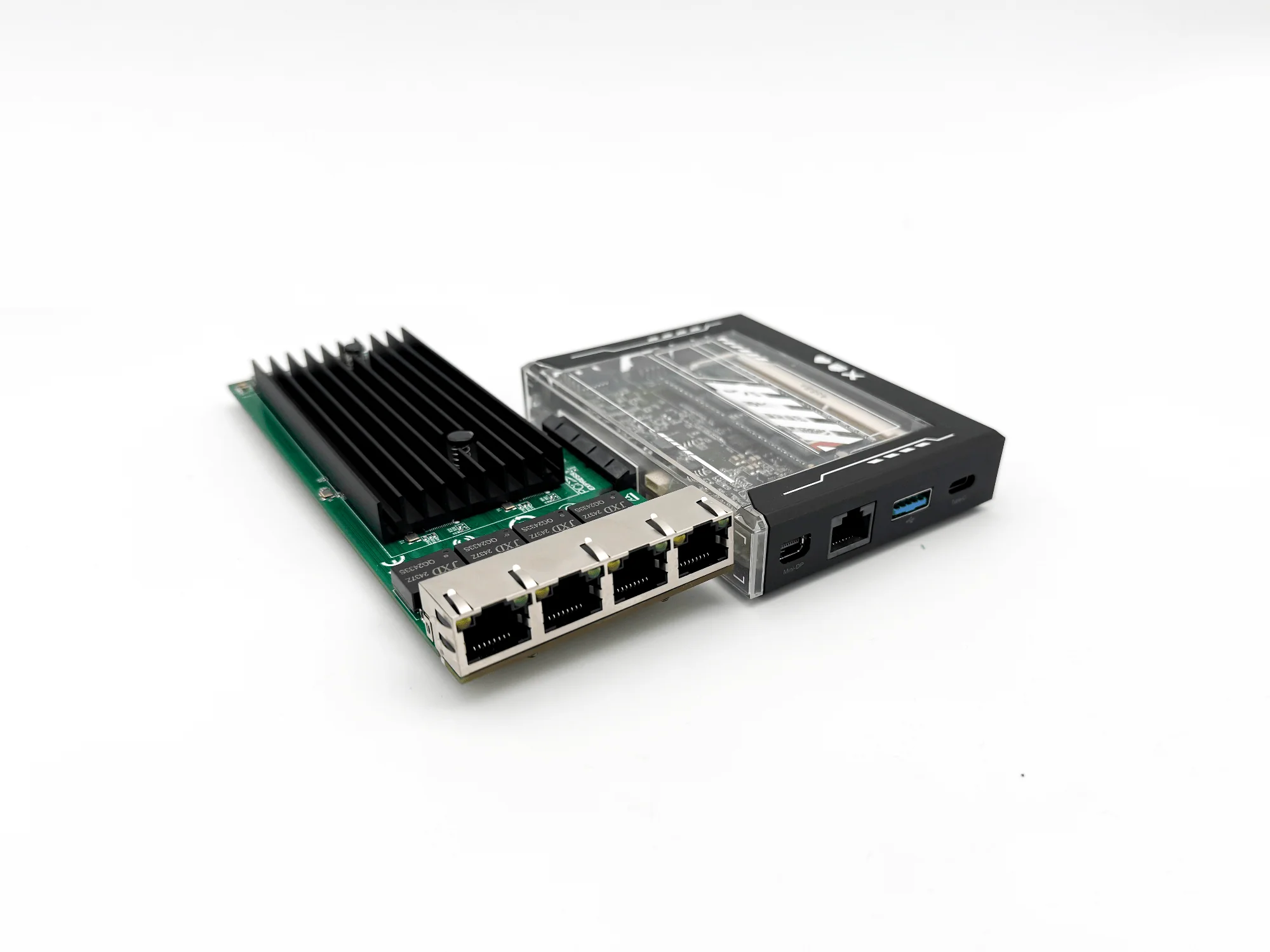

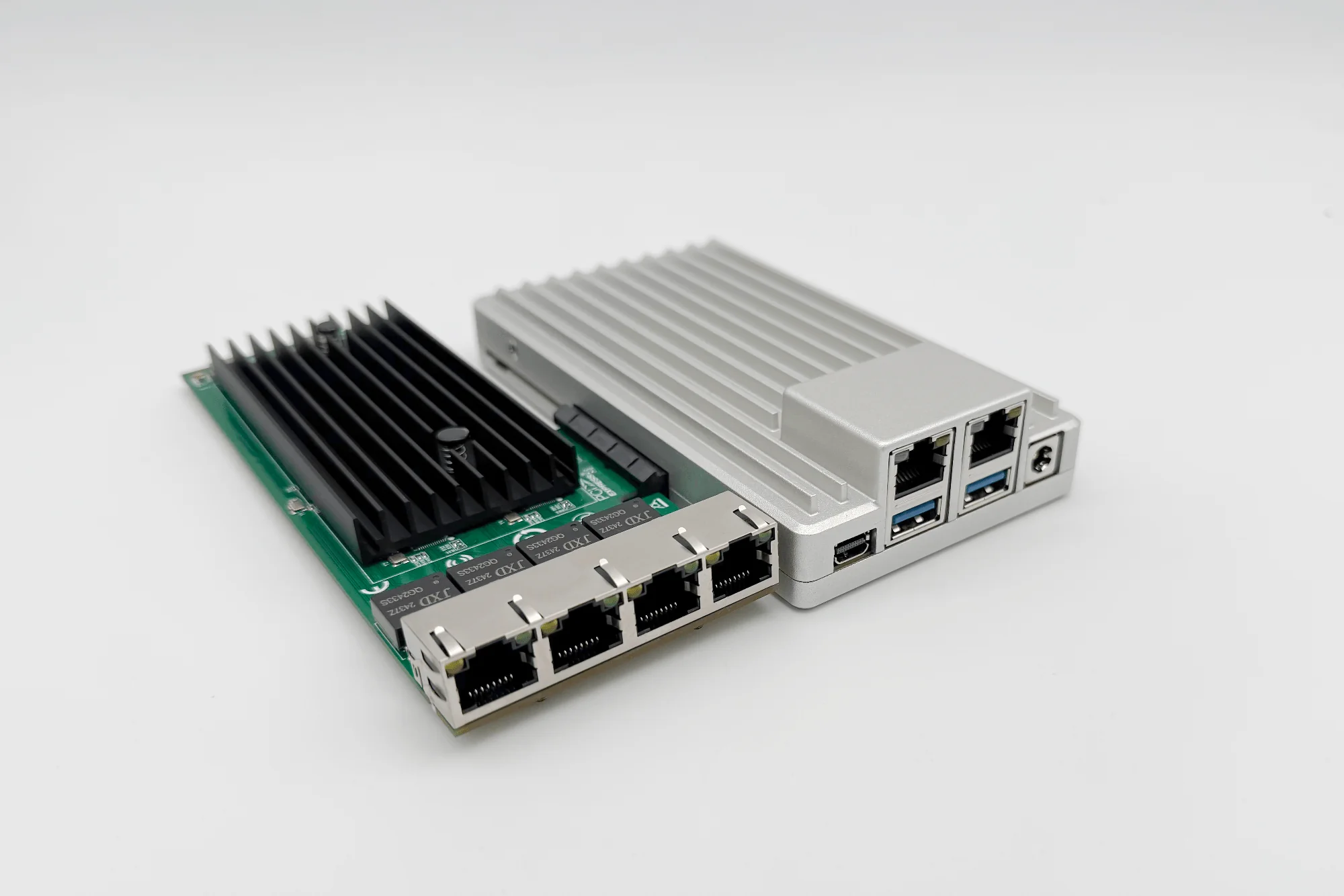

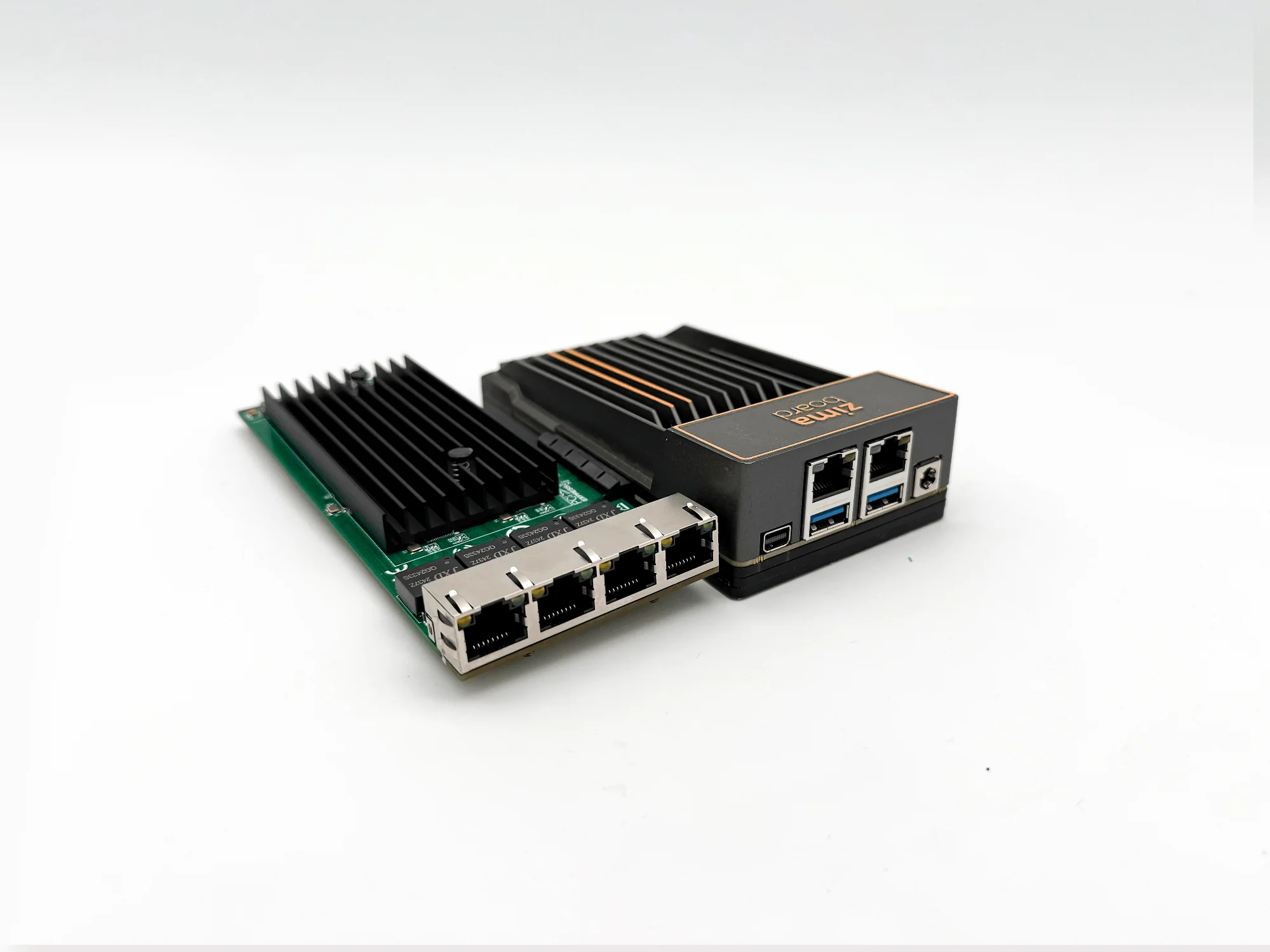

PCIe to 4-Port 2.5G Ethernet Adapter Intel I226 Chipset

INTRODUCTION

Quad 2.5Gbe with i226v3!

After several years of market verification, the I226 chipset has been trusted and used by tinkerers in various ways. Compared with the RTL8111 and RTL8125 chipset, the I226 chipset not only provides a speed of up to 2.5G per port but also has a network port that supports wake on Lan wake-up operation and supports PXE function. With this PCIe x4 to 4-Port 2.5 Gigabit Ethernet Card Intel I226 Chipset, you will be able to build powerful functions such as custom firewalls, multi-gig home routers, etc. Please purchase according to your budget/needs.

FEATURE

• Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
• IEEE 802.3u auto-negotiation conformance
• Half duplex operation at 10BASE-Te and 100BASE-TX
• Supports PXE
• Support Wake on LAN on the first port (upper left corner)
• Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
• Supports jumbo frames 9.5KB and without TSN

SPECIFICATION

• Bus Type: PCIe
• Chipset: Intel i226v3
• Number of Ports: 4 Ports
• Transfer Rate: 2.5Gbps
• Dimensions: 141x69mm
• OS Compatibility
  - Windows 10S/ 10RS5+
  - Ubuntu 19.04 or higher

SHIPPING LIST

• 1 x PCIe x4 to 4-Port 2.5 Gigabit Ethernet Card Intel I226 Chipset
• 1 x User Manual
• 1 x Low profile bracket
