ZimaBlade - Single Board Server for Cyber Native

INTRODUCTION

Your Personal, Local Server.

ZimaBlade is an x86 personal server designed for local execution and control of everything from file sharing and media playback, to key management and encrypted P2P transmission. Gigabit Ethernet connectivity ensures uninterrupted network access, while PCIe slots, SATA ports, and USB ports offer endless expansion options. A rugged, custom enclosure keeps everything safe and looking great.

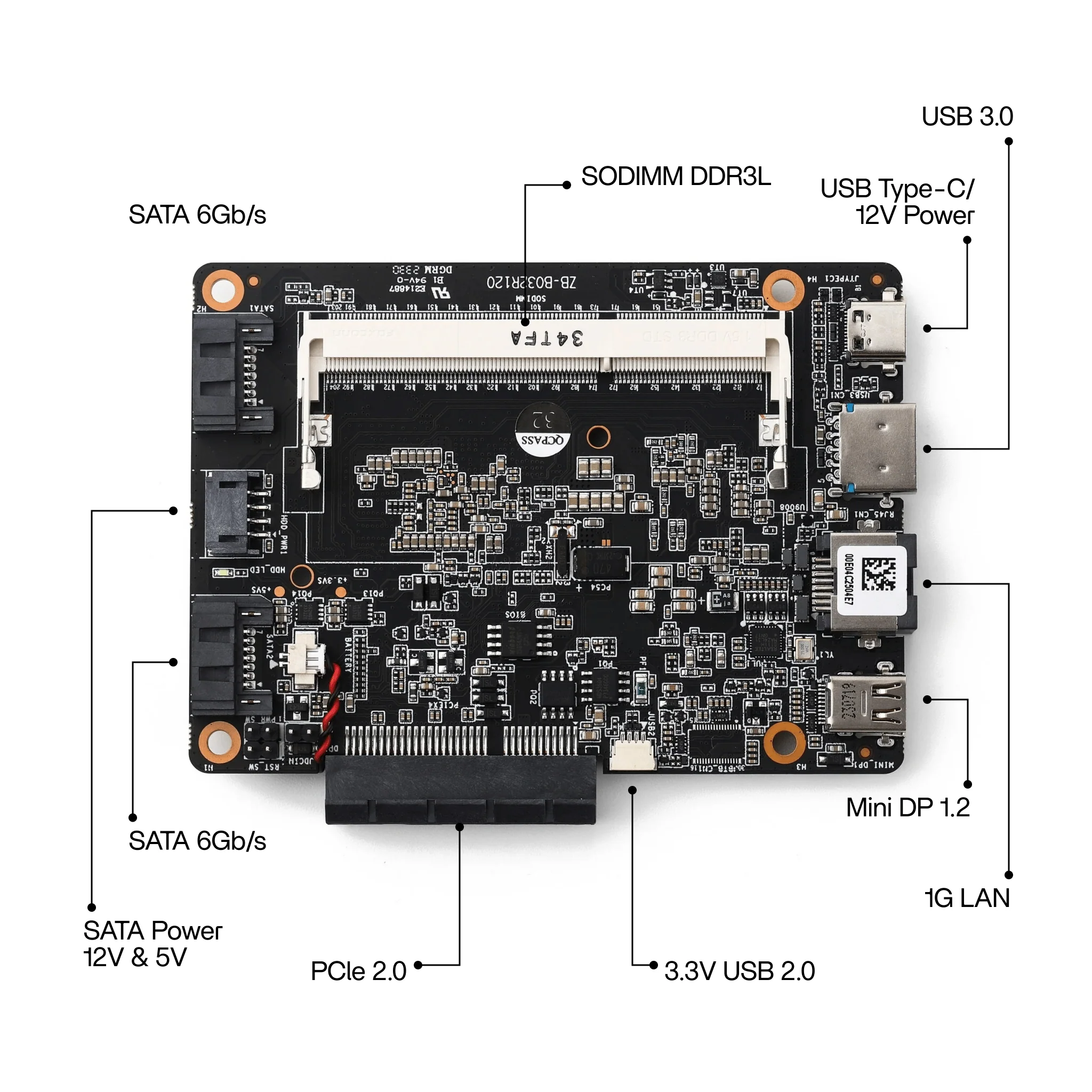

SPECIFICATION

• • CPU:
    • dual-core option (3760): Intel® Celeron with 2.2 GHz Turbo Speed
    • quad-core option (7700): Intel® Celeron with 2.4 GHz Turbo Speed
    • Intel® AES New Instructions
    • Intel® Virtualization Technology (VT-x)
    • Intel® Virtualization Technology for Directed I/O (VT-d)
  • Memory: SODIMM slot, compatible with 16 GB DDR3L RAM
  • Storage: Integrated 32 GB eMMC

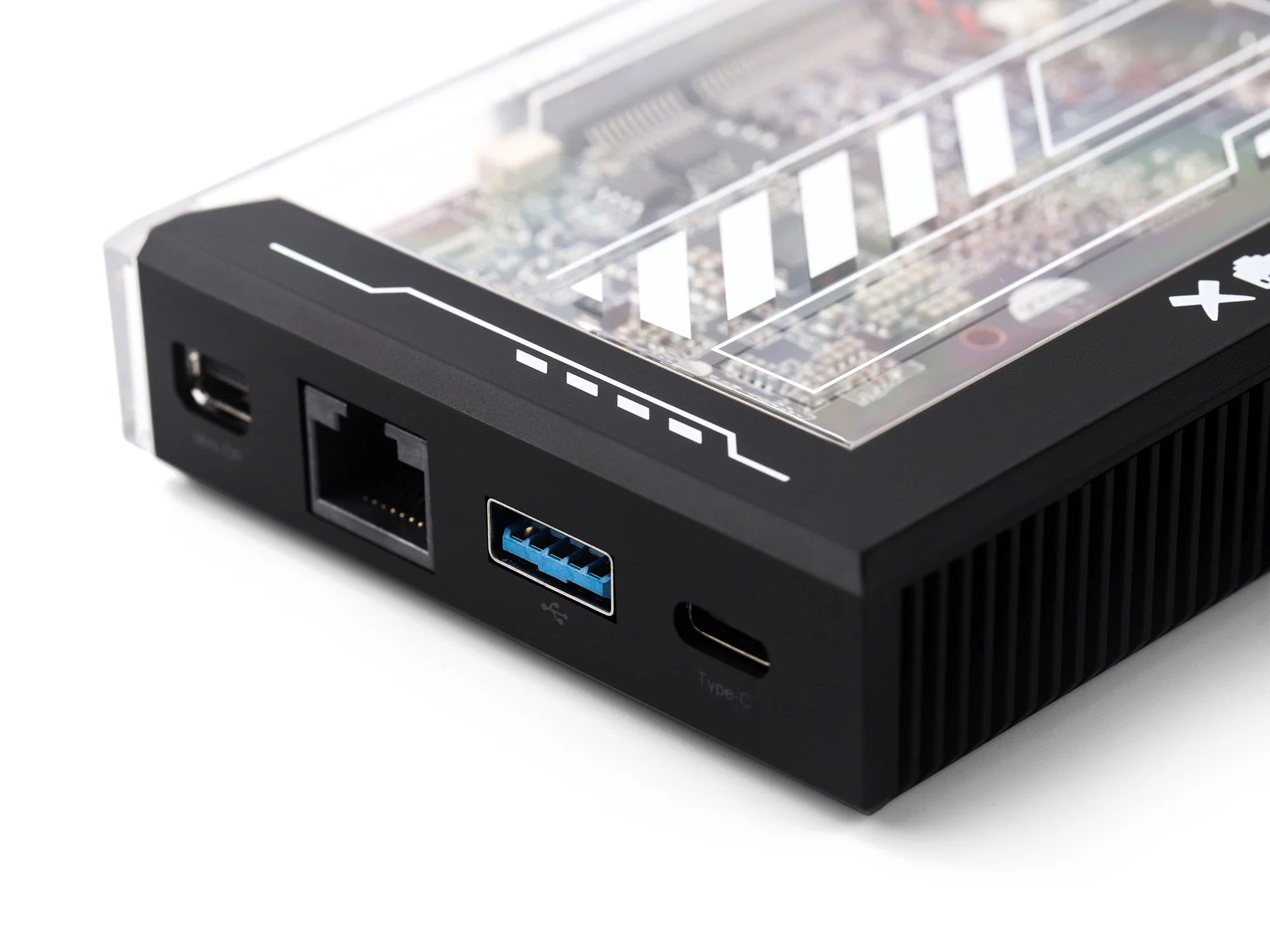

  • Network: 1 x 10/100/1000 Mbps Gigabit Ethernet
  • Display:
    • 1 x 4K MiniDP @ 60 Hz
    • 1 x board-to-board eDP interface
  • Graphics:
    • Up to 700 MHz
    • Intel® Quick Sync Video
    • Intel® Clear Video HD Technology
    • Intel® Clear Video Technology

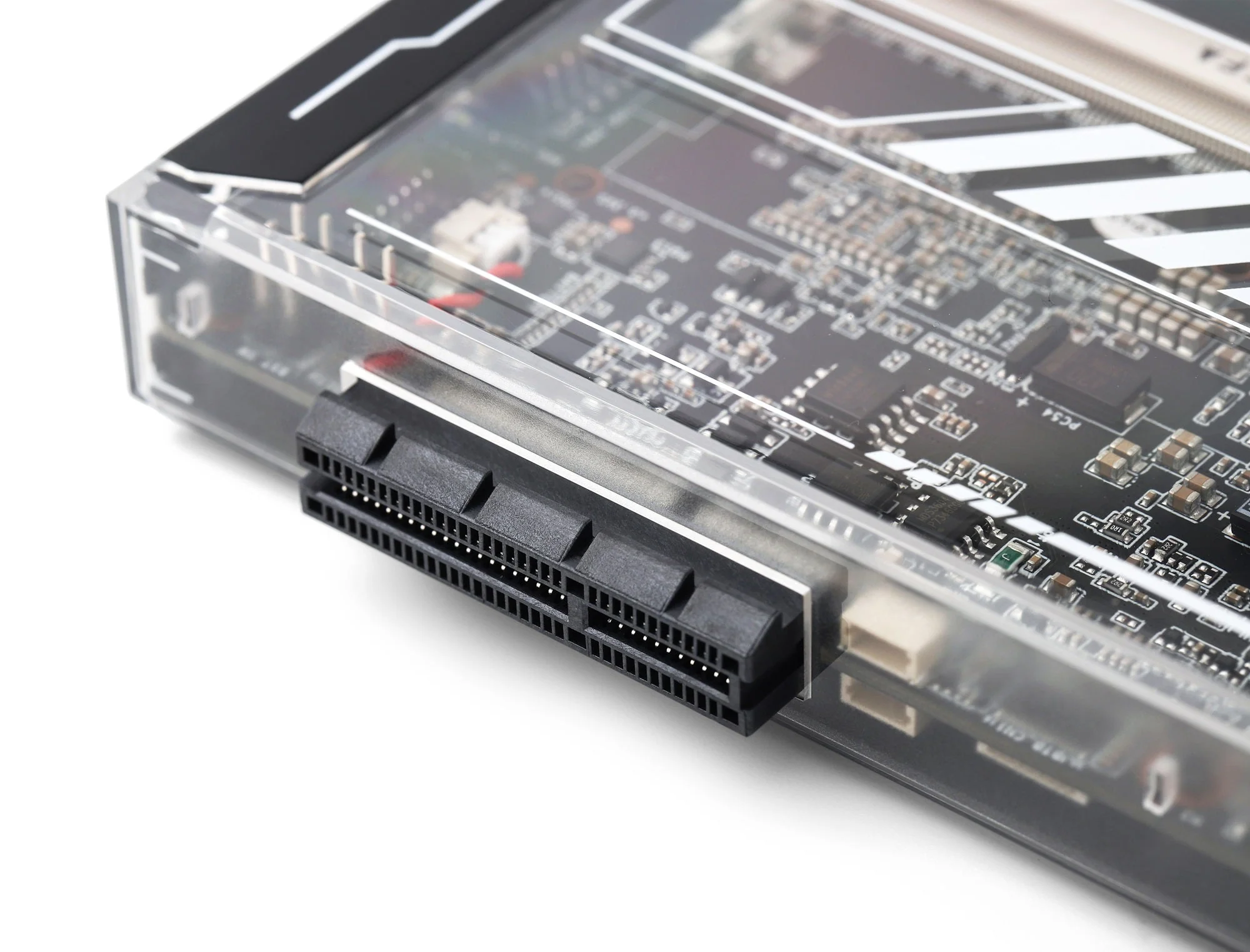

  • PCIe: 1 x PCIe 2.0, four lanes
  • USB:
    • 1 x USB Type-C (data + power + display)
    • 1 x USB 3.0
    • 2 x USB 2.0

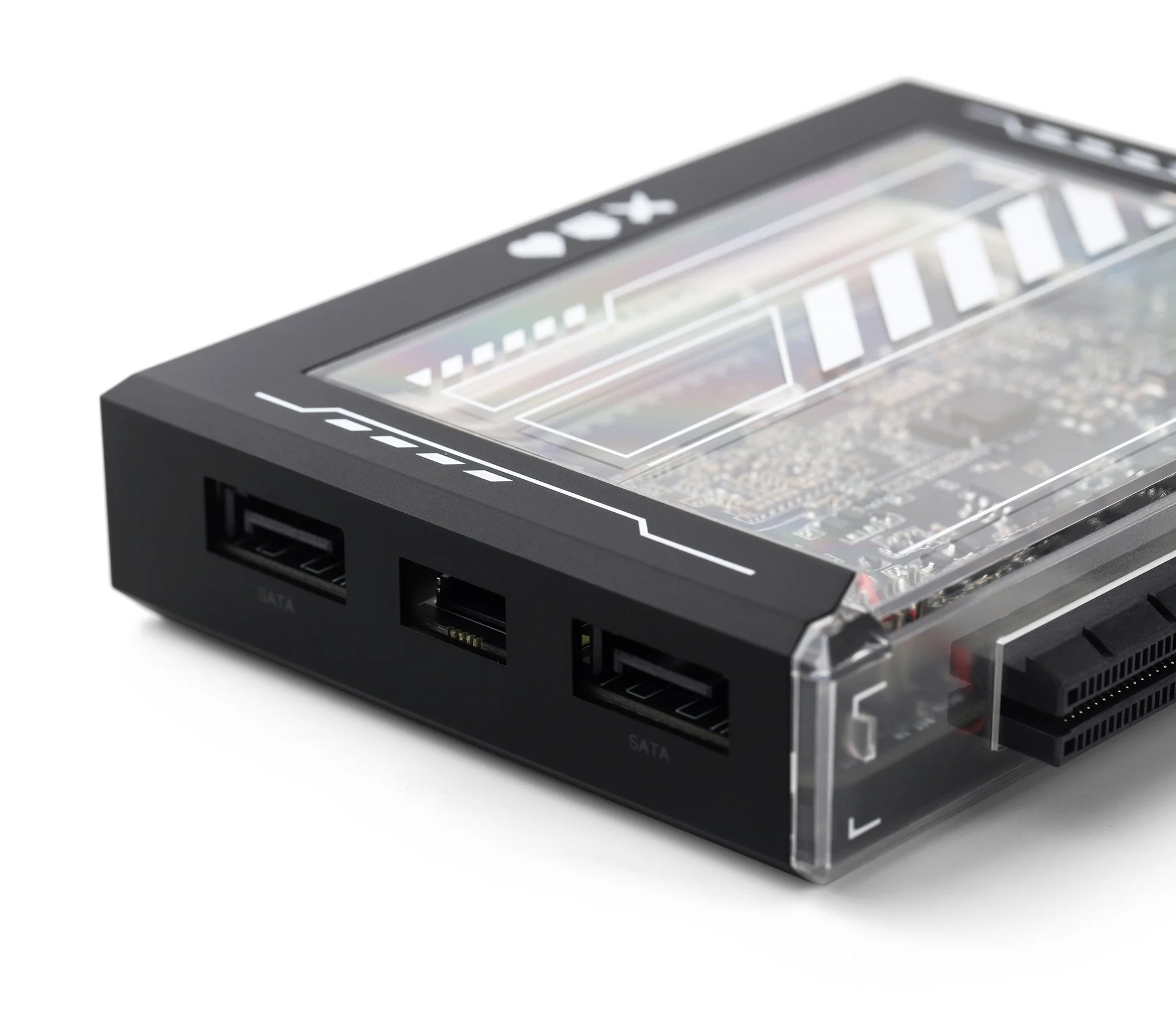

  • SATA: 2 x SATA 3.0
  • Power: 36 W USB Type-C power adapter
  • Thermal: 6 W TDP with passive cooling
  • Dimensions: 107 mm x 80 mm x 23 mm

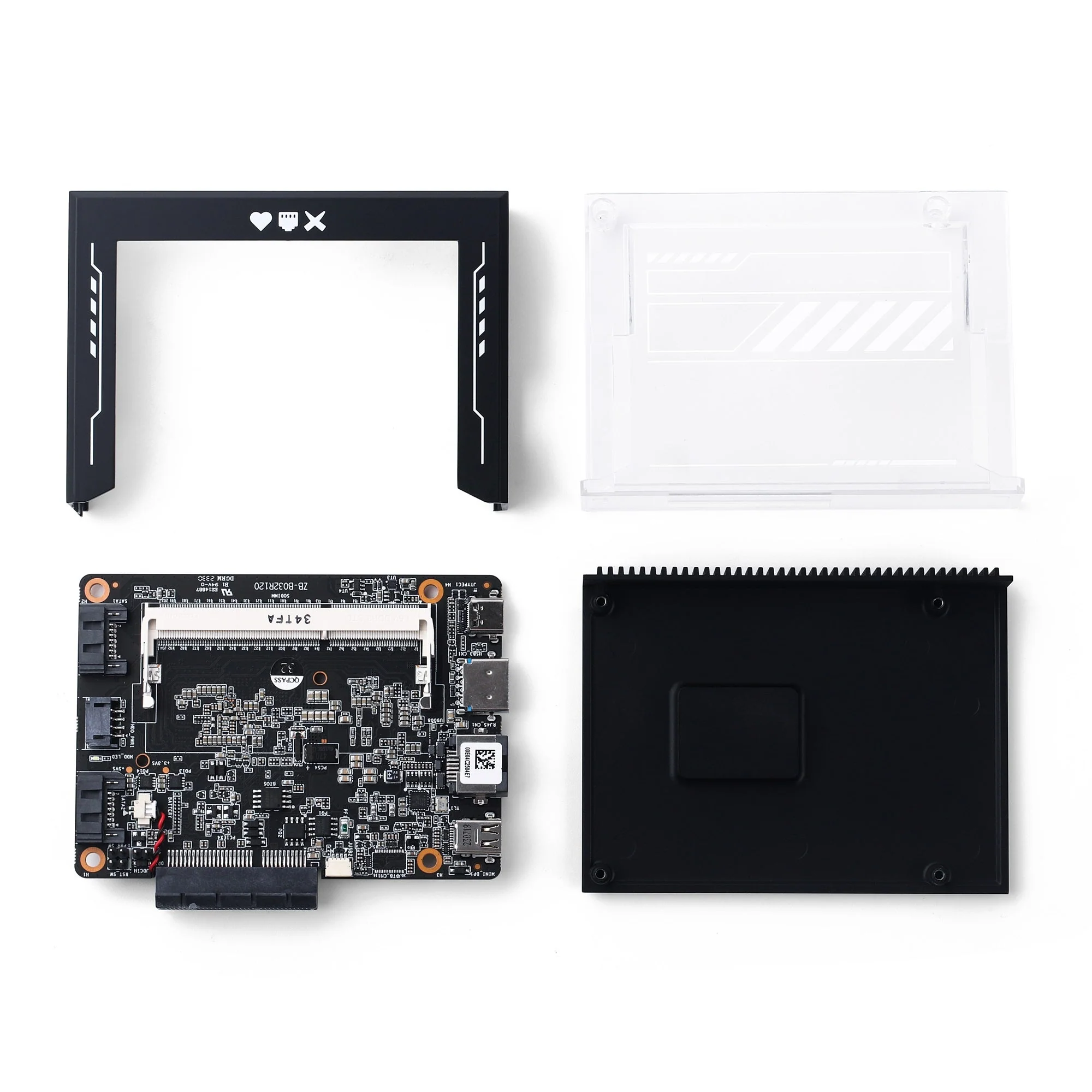

  • Enclosure: Custom injection molded polycarbonate (opaque and transparent), aluminum alloy heatsink, and four black silicone feet
  • Software: Pre-installed Debian-based CasaOS with streamlined Docker experience. Fully compatible with Windows, Ubuntu, Debian, Raspberry Pi OS, CentOS, OpenWrt, pfSense, Android, LibreELEC, and more.

SHIPPING LIST

• 1x ZimaBlade
• 1x USB-C Cable
• 1x SATA Cable
